| Other: |

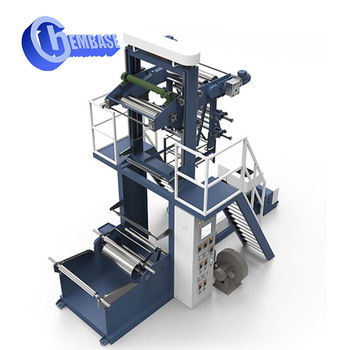

| Model |
Mini |
Die Head |
Die Head Type |
Single Layer |
| Suitable Material |
HDPE LDPE LLDPE |
Air Ring |
Double lips air ring |
| Film width |
500mm |
Traction Unit |
Traction roller width |
600mm |
| Film thickness |
0.008-0.05mm |
Effective width |
500mm |
| Max.Output |
45kg/hr |
Traction speed |
120m/min |
| Extruder |
Screw diameter |
45 |
Winding Unit |
winding type |
Friction type automatic single/double winder |
| Screw L/D |
30:1 |
Winding speed |
120m/min |
| Barrel Cooling |
Water Colling |
Voltage |
380V,50hz |
| Main Motor power |
15kw |
Dimension |
4500*2000*3700mm |
| Total power |
37kw |
Weight |
1.3T |
|
